Precision Thermal Radiation Source
Large-format black body emitter for infrared thermal imaging and gas flow visualization
Images represent the actual instrumentation developed for this project. Technical details have been abstracted for confidentiality purposes.
Challenge
Thermal imaging of gas flows requires uniform, stable thermal radiation sources. Commercial black body calibrators are small and expensive. Create large-format source with precise temperature control, excellent uniformity, and near-ideal black body characteristics at reasonable cost.
Solution

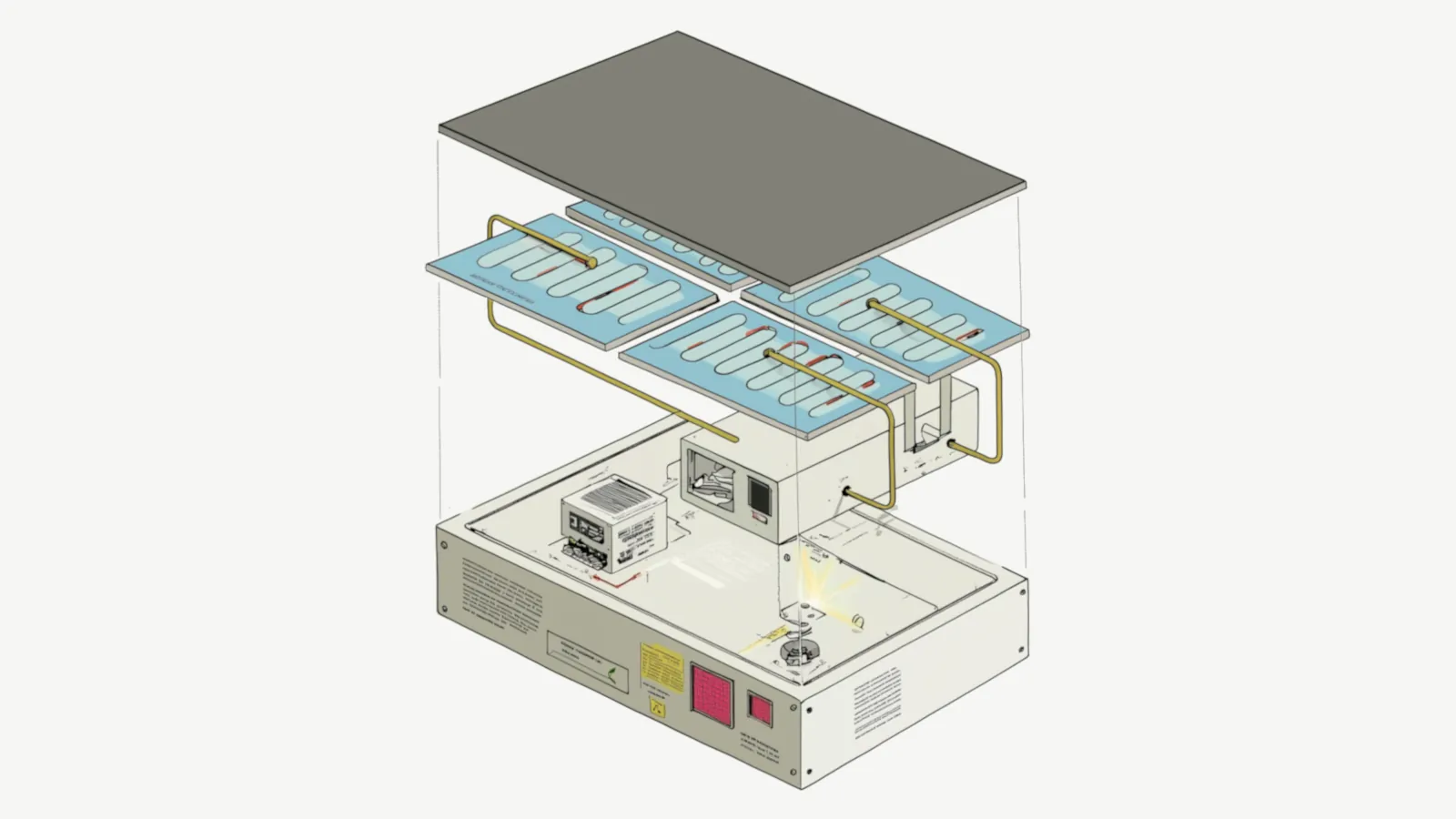

Large-format thermal radiation system (A2 size) achieving near-ideal black body characteristics through optimised surface treatment and thermal mass design. Uses industrial-grade components for safety certification and reliability, with custom integration of heating, sensing, and control systems. The design priorities temperature stability and spatial uniformity over heating speed, matching the requirements of long-duration scientific imaging applications.
Key Technical Features
- • Thick aluminium plate providing high thermal mass for excellent heat distribution
- • Sandblasted surface at specific granule size for controlled surface texture
- • Black anodised finish creating near-Gaussian black body surface
- • Multi-zone pad heater distribution for uniform heating
- • Distributed thermocouple array for spatial temperature monitoring
- • Industrial PID controller with thermocouple feedback for ±0.5°C stability
- • Insulation layer minimising external heat loss
- • Metal enclosure providing safety rating for thermal and electrical ranges
- • Off-the-shelf safety-rated components (PID controller, heaters, power system)
- • Simple operation: standard IEC plug, on/off switch, temperature set point
- • Predictable thermal emission without environmental reflections
Applications

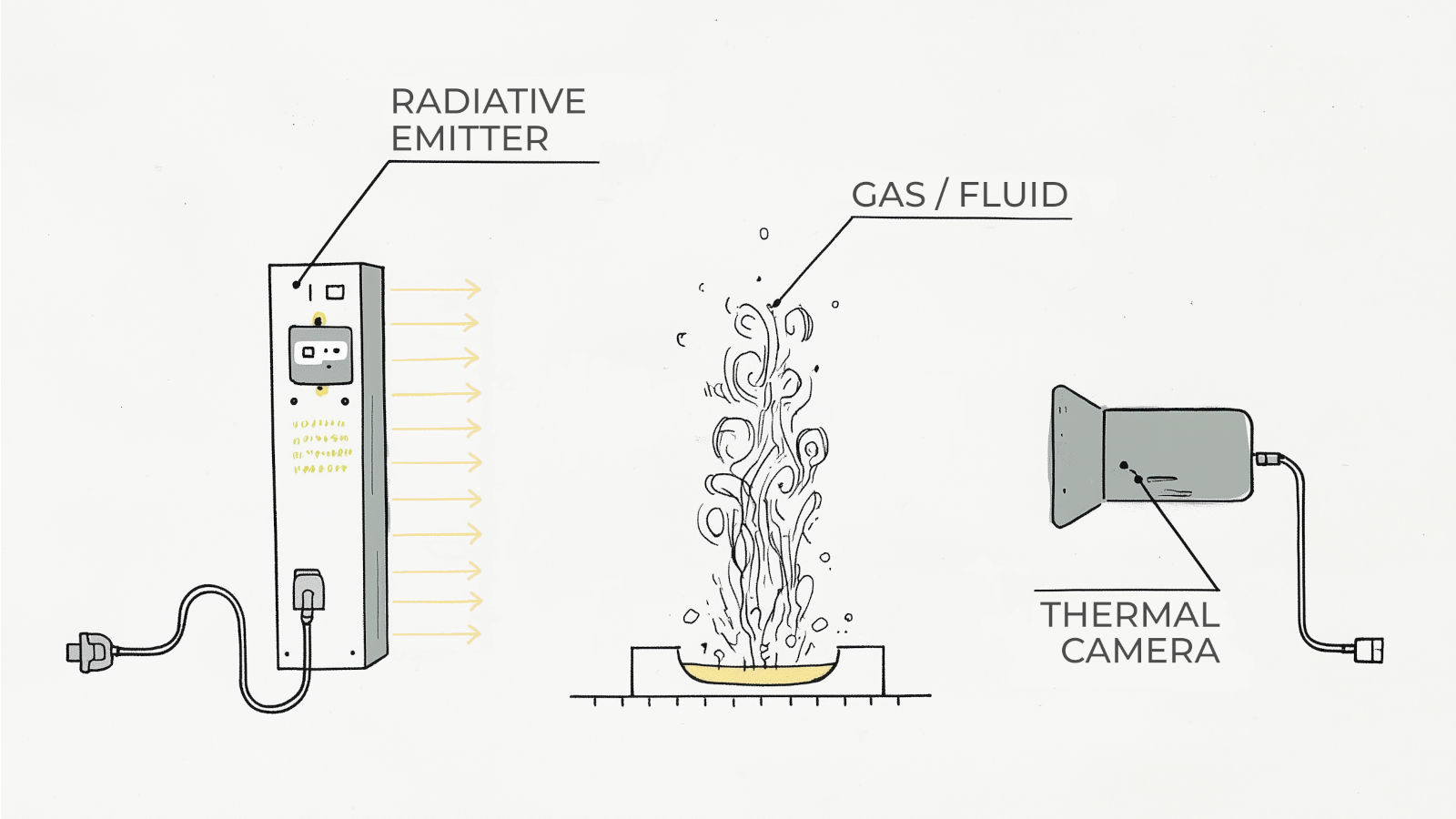

Gas Flow Visualisation
CO₂ and other gas flow imaging using thermal cameras
IR Calibration
Large-area infrared calibration source
Flow Field Analysis
Research environment flow visualisation
System Validation
Thermal imaging system testing and validation
